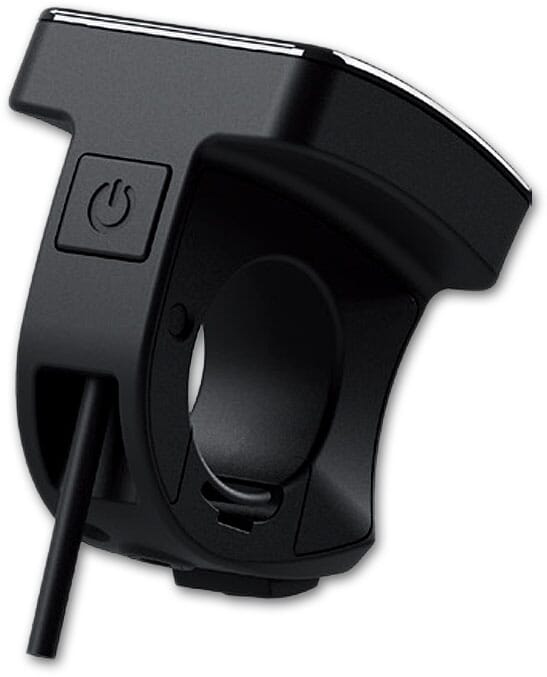

The Brose Allround Display - the name says it all
As with its drives, Brose's Allround Display responds to the special requirements of a wide variety of e-bikes. The Allround Display is compatible with all e-bikes equipped with the Brose Drive. Brose stands out with its perfect interaction between drive and display. Mount the Allrounder on the left or right side of the handlebar, the display visually matches any e-bike division.
Features
- 14 functions
- Protection class: IPX/ (HMI) dustproof and splashproof
- Weight with cable: 50g
- ABS housing
- 5 support levels: OFF | ECO | Tour | Sport | Boost/ Boost FX
- Push assist
- Front and rear lights can be controlled via the display
Note: For quick maintenance and repair by certified dealers, the display has a direct link to the digital Brose service tool.
The Allrounder - small but powerful

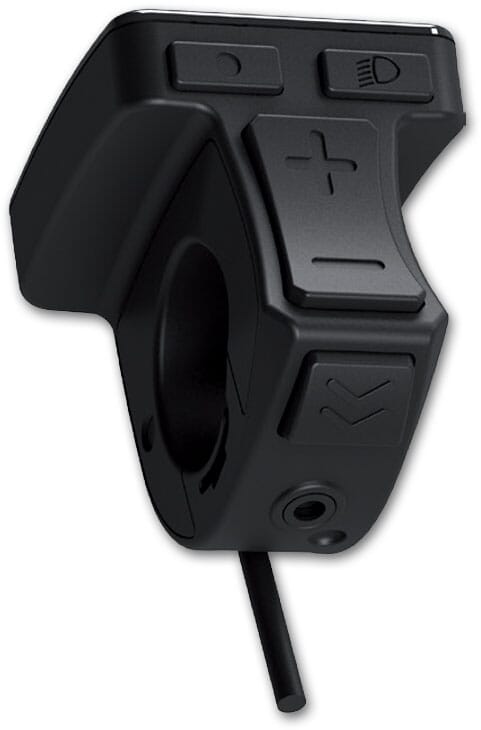

With its 6 buttons, the Allrounder offers an excellent and clear feel. The driver's hand does not have to be removed from the handle for operation. You can control the most important functions with your thumb. The 1.5" TFT colour screen displays information such as:
- Battery charge level
- Support level
- Speed
- Range
- Kilometer / miles counter
- Trip information
- Light
- Time
- Sliding assistance
With the slightly curved surface, the display can be easily read from almost any position. Thus, the allrounder can be mounted either left or right on the handlebar. Thanks to the backlight, the information can be easily read even in the dark or in sunlight. The backlight can be set manually or you can activate the automatic function and the display automatically regulates the brightness of the display. To protect the small allrounder well, Brose uses an impactresistant ABS housing.
Tip: Optimise the overview. Adjust the selection of displayed data individually.
Conclusion: The Brose Display Allround not only impresses with its crisp design, but also with its performance and good readability. The most important functions can be easily operated with your thumb. 14 functions are at your disposal. The display fits almost every type of ebike. Enjoy the modern, simple and timeless display from Brose.
Note: Should you have any questions regarding compatibility or availability, do not hesitate to contact our customer service.
Drive system: | Brose drive |
Manufacturer: | Brose |
Power source: | eBike battery |
Weight: | with cable approx. 50g |
Item: | Allround Display |
Colour: | black |
Measurements: | 42 x 37 x 50mm |
Display: | 1.5“ TFT Color-Display (240x240px) |
Item number: | E41230 |
Material: | ABS |
Mounting: | Can be installed on the right and left of the handlebar |
Max. power: | 3W |
Voltage: | 12V |
Handlebar: | Diameter - 22,2mm |
Certification: | CE, ROHS, Range, Bluetooth |
Bluetooth: | 5.0 (optional ANT+) |
Control button: | On/Off | levels (+/-)| Help | Menu | Light on/off |
