Magura brake disc MDR-P 6-hole

45.90€ * RRP 55.00€ * (16.55% Saved)

Prices incl. VAT plus shipping costs

  • 2946-001
  • 2701938
  • 4055184025796

Diameter:

The Magura brake disc MDR-P was developed specifically for higher braking load in the e-bike... more

The Magura brake disc MDR-P was developed specifically for higher braking load in the e-bike area. The brake disc convinces especially through the patented MAGURA Dovetail Interlink technology. Here, the special interlocking of the outer and inner ring is of great importance. In the event of thermal expansion of the outer ring, the inner ring provides additional support. This means that the torque is transmitted over the entire surface instead of just via the rivets. Ultimately, this ensures increased stiffness of the brake disc and particularly direct heat dissipation under continuous load.

The brake disc is compatible with the complete Magura MT series.

Note: The 6-hole brake discs are not compatible with Centerlock recordings!

Attention: Please check whether there is a manufacturer's release for your fork or frame for the corresponding brake disc size. This applies in particular to the Ø 220mm brake disc.

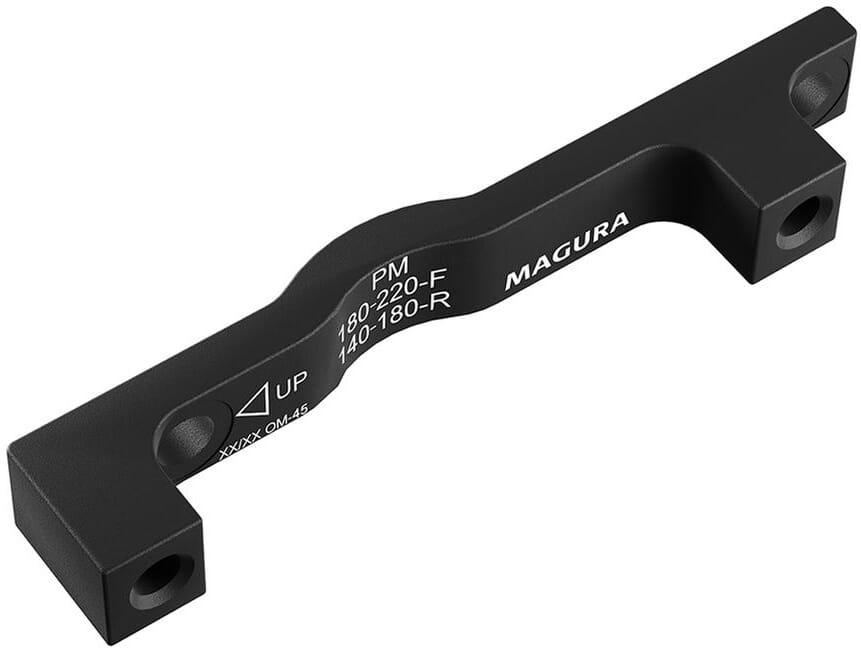

Which MAGURA adapter do I need?

Brake disc Ø 140 mm Ø 160 mm Ø 180 mm Ø 203 mm Ø 220 mm
Fork
IS   QM 43 QM 12 QM 5
PM 6"   direct QM 40 QM 42
PM 7"     direct QM 44 QM45
PM 8"       direct
Rear hub
IS   QM 12 QM 41 QM 9
PM 5" direct QM 40 QM 45
PM 6"   direct QM 40 QM 42
PM 7"     direct QM 44
PM 8"       direct



Specifications
Manufacturer: Magura
Item: Magura brake disc MDR-P 6-hole
Scope of delivery: 1 disc barke incl. 6 mounting bolts
Colour: silver, black
Item number: 2946
Compatibility: whole range Magura MT
