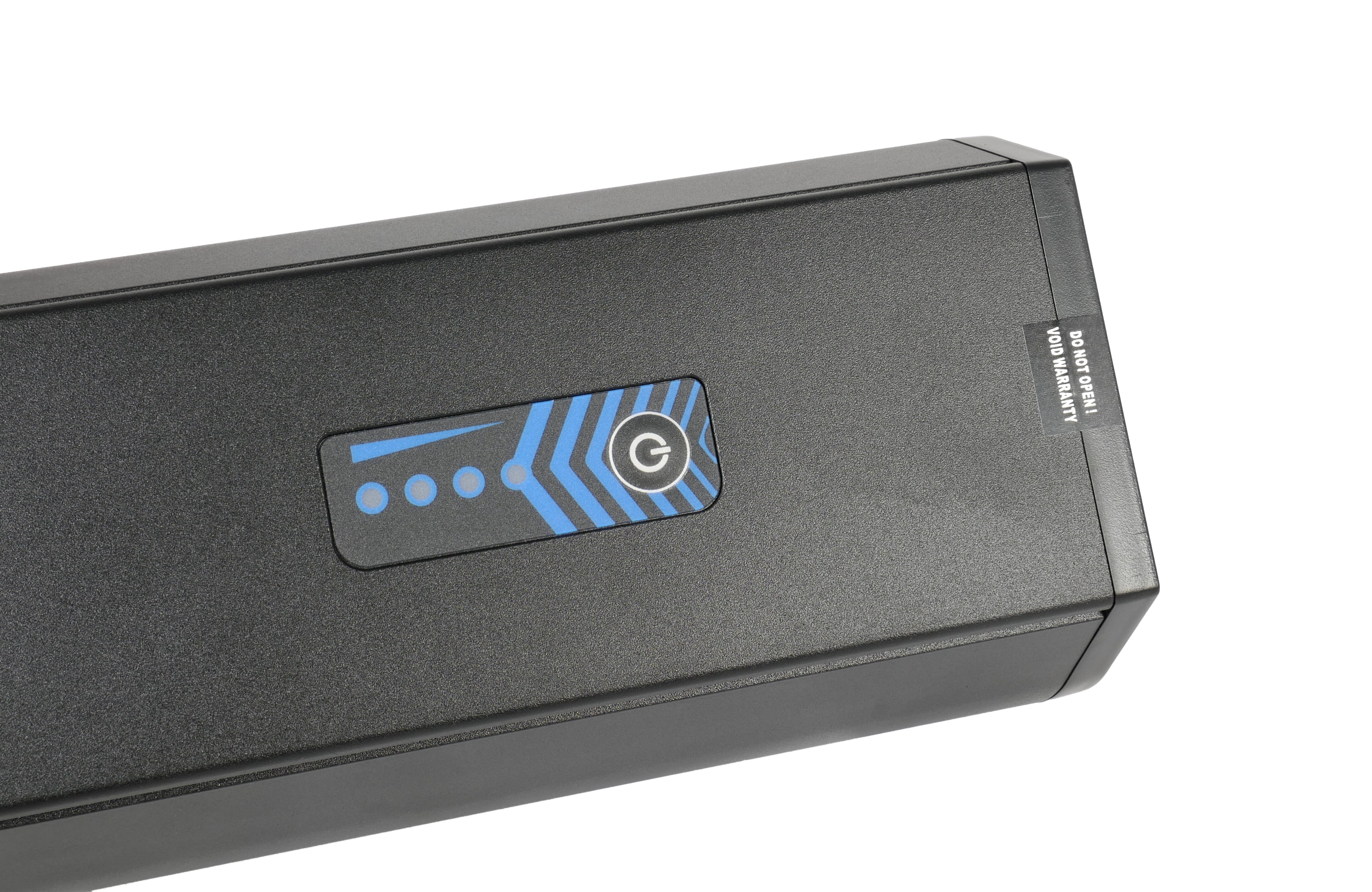

Yamaha Simplo-Intube Battery 36V - 630 Wh

The Yamaha Intube Battery offers a generous 630 Wh capacity and is designed for long e‑bike rides. It is compatible with electric bikes equipped with Yamaha 36 V PW‑SE and PW‑X drives from the 2019 model year onwards. The TP‑YMC lithium‑ion battery from Trend Energy has no memory effect and can be charged at any time, regardless of its current state of charge. Using the Yamaha Simplo Charger, the charging time is approximately 5 hours (630 Wh) for a full charge. Alternatively, the Simplo 4 A Charger can be used, which features a straight battery connector and includes a power cable with an EU plug.

Features of the Yamaha Intube Battery 630 Wh

• Compatible with E‑bikes using Yamaha PW‑SE and PW‑X drives
• 630 Wh - 36 V - 17 Ah
• Dimensions: 385 × 84 × 72 mm (L × W × H)
• Weight: 3.8 kg

Note: This battery does not include the Haibike factory-installed battery lock plate, which must be purchased separately and installed for use on Haibike models.

The 630 Wh Yamaha Simplo Intube battery cannot replace the smaller 500 Wh battery. Retrofitting a factory-installed 500 Wh battery to a 630 Wh battery is not possible due to the difference in size.

Compatibility

• Haibike
• Winora
• Lapierre
• Yamaha Bikes (US & Canada only)
• BH Bikes
• Other brands with Yamaha PW‑SE, PW‑TE, and PW‑X drives
