Bosch System Controller control unit for Smart System

The Bosch System Controller reduces the functions of an e-bike control element to a minimum. Designed for the Bosch Smart System, the deliberately limited number of functions and information provides a quick overview and prevents distractions during the ride. Integrated into the top tube and made of robust material, it is optimally protected against impacts and scratches. With just two buttons, you control the most important functions, such as turning the e-bike on and off and switching between riding modes. Smart features such as eBike Lock and LED displays for riding mode and battery level provide an optimal overview of the most important functions. Thanks to the USB-C diagnostic interface, updates and diagnostics are also possible via the System Controller.

Features of the Bosch System Controller control unit

• Stylish control unit for the Bosch Smart System
• Discreetly integrated into the top tube
• Minimalist and clear
• Interface for the eBike Flow app
• Smart features such as eBike Lock

Functions & Smart Controller Control Units

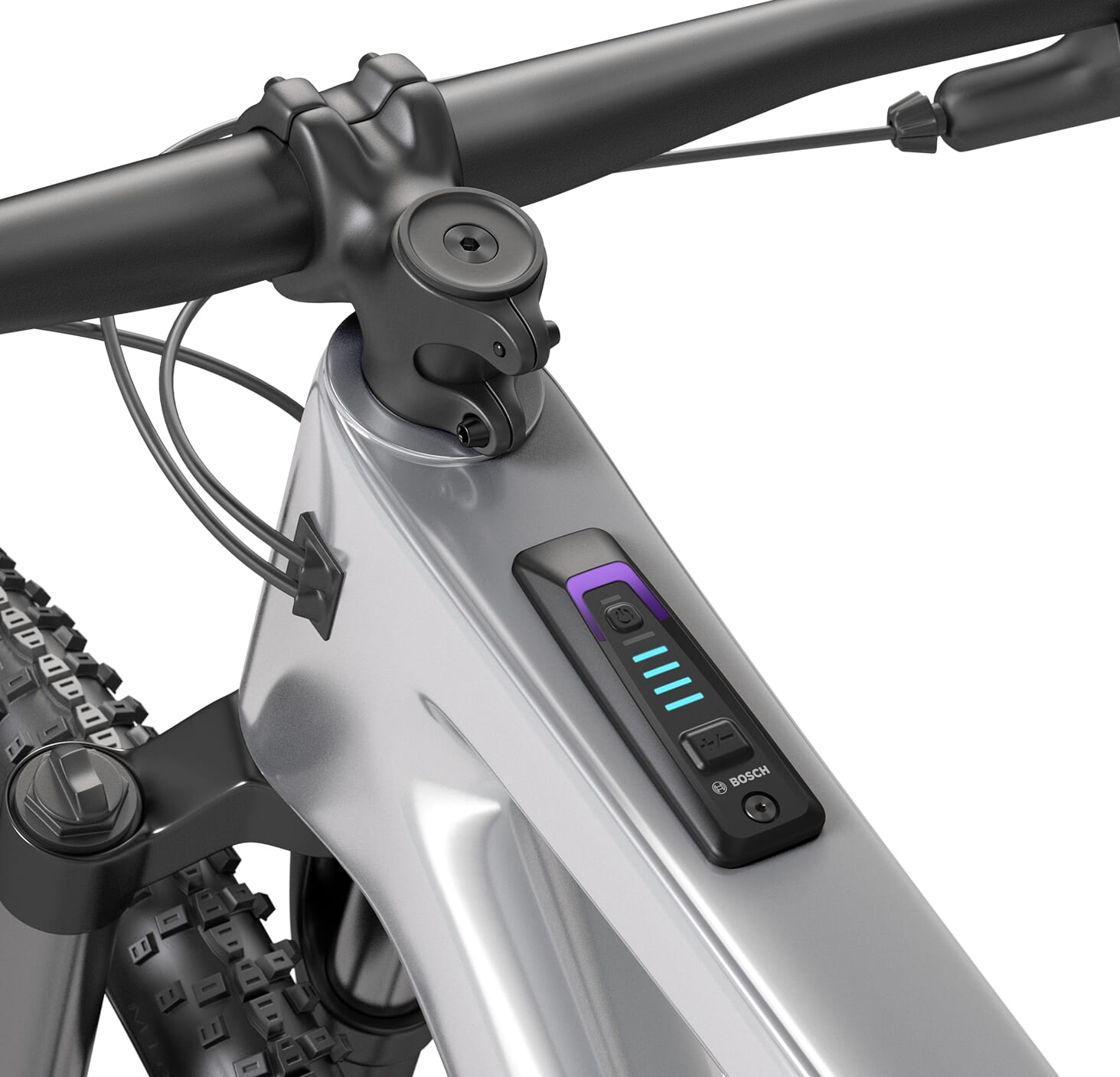

Seamlessly integrated into the top tube, the System Controller is a robust, unobtrusive, and well-protected companion. It's perfect for sporty tours and design-conscious eBike fans. The built-in LEDs use different colors to indicate the riding mode and battery charge level in 10% increments, while two buttons control the most important functions: turning the eBike on and off, and changing the riding mode. The controller also serves as an interface for transferring software updates from the eBike Flow app to the eBike via Bluetooth, making it a stylish alternative to the Bosch LED remote. The System Controller can also be combined with a Kiox 300, a Kiox 500, or the Smartphone Grip to view more information while riding. These are operated using the Bosch Mini Remote on the handlebars. In this regard, you can watch our tutorial here.

Installation & Scope of delivery of the Bosch System Controller

The System Controller is installed in the top tube of your e-bike. To do this, connect the Bosch Y-display cable (not included) routed in the frame to the controller, insert it into the top tube, and finally secure it with the included mounting screw (M4 x 8). If you have an e-bike that has a Bosch frame adapter installed in the top tube in addition to the system controller, use the included frame adapter mounting screw (M4 x 30.0). Scope of delivery:

• 1x Bosch System Controller
• 1x short mounting screw (M4 x 8) for e-bikes without a frame adapter
• 1x long mounting screw (M4 x 30.0) for e-bikes with Frame adapter
• 1x Operating and assembly instructions

There is also our written tutorial: Add a Kiox 300, 500 or SmartphoneGrip display to your Bosch System Controller.
