With the Kiox 300 retrofit kit, you can retrofit your Bosch Smart System e-bike with the practical display. The kit includes all parts for a successful conversion - the Bosch Kiox 300 display, the display mount, a Bosch Smart System display cable and, if required, the matching Kiox 300 single-arm bracket. To retrofit, attach all parts to your e-bike and connect the Smart System Display to your Bosch LED Remote control unit on the handlebar. Now your new Kiox 300 display is ready for use and you always best informed about your e-bike.
Features of the Bosch Kiox 300 Smart System retrofit set

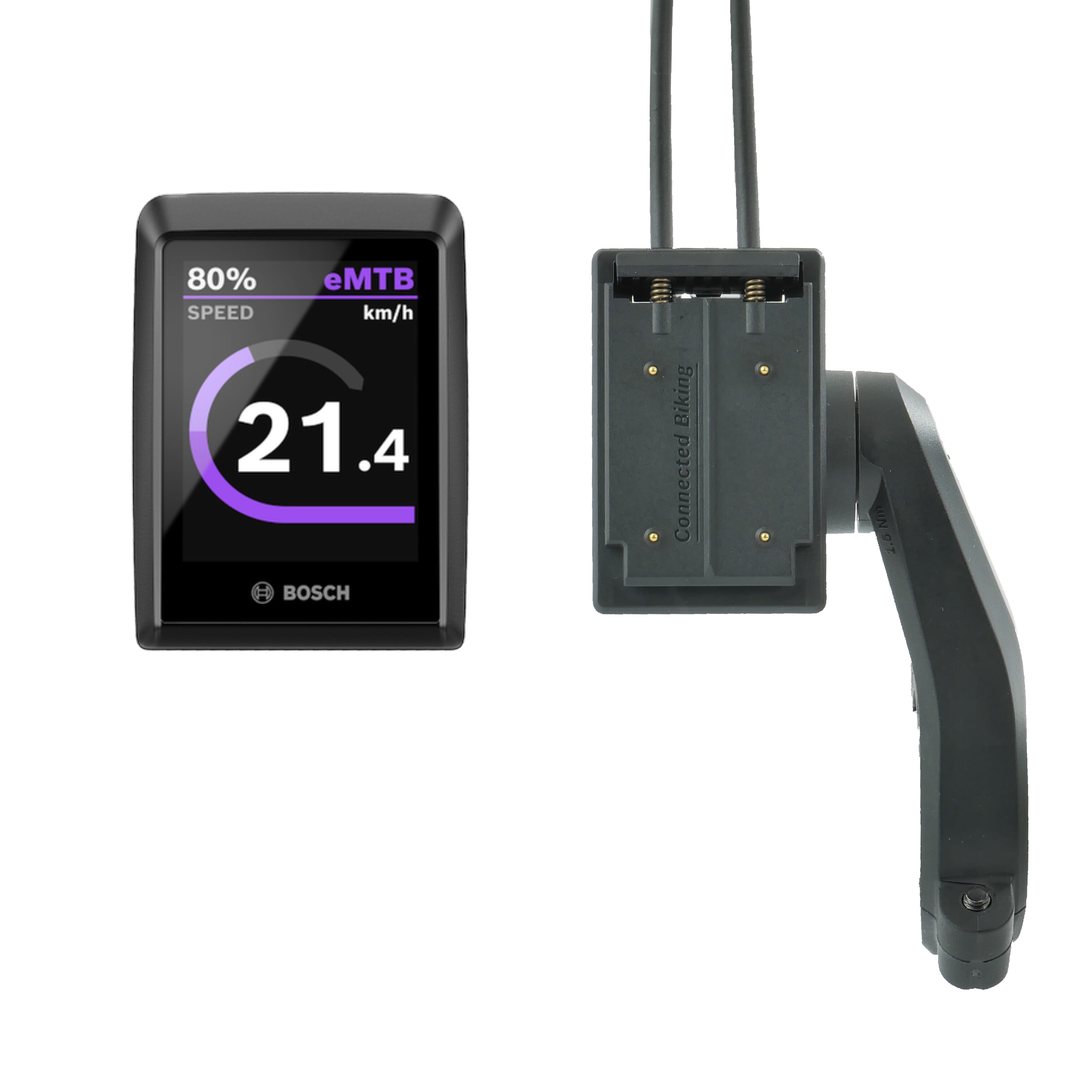

- Comprehensive set for retrofitting the Bosch Kiox 300
- Incl. Bosch Kiox 300 Display
- incl. Bosch display interface/ mounts
- incl. Bosch Smart System display cable - 300mm
- incl. 1-arm handlebar mount - 31.8/35mm on request
Kiox 300: Part of the Bosch Smart System
With the introduction of the smart system in 2022, Bosch has made extensive changes to its e-bike system. Almost all components and parts have been adapted and optimized. The biggest technical innovation here is that the central control of the e-bike now runs via the Bosch LED remote handlebar control unit. This means that you can now operate your Bosch e-bike without a separate display. But if you do not want to do without the convenience and extensive status information, there is the Kiox 300 retrofit kit. With just a few simple steps, you can thus attach the popular Bosch display.
Bosch Kiox 300 retrofit
For the conversion, you only need to attach the Kiox 300 to your e-bike and switch between the e-bike drive and LED remote with the display cables. As a first step, mount the Bosch Smart System Display mount to your bracket, if applicable to the included 1-arm bracket. Depending on how you want to mount the Kiox 300, you will need a different display mount. Mounting in front of the handlebar - you need the mount with cable exit at the back. Mounting behind or above the handlebar - you need the mount with cable exit in front. Now you can mount, for example, the one-arm holder from the Kiox 300 conversion set. Now take the existing display cable from the control unit and plug it into the Kiox 300 mount. Now use the 30cm display cable from the conversion kit to reconnect the display holder to the LED Remote. The assembly is now complete and the Kiox 300 is ready for use. For ideal attachment to any e-bike, the Bosch Smart System display cable is available in different lengths, only the 300mm version is included in the set.
The little all-rounder: Bosch Kiox 300
The high-resolution e-bike display from Bosch impresses with its high-quality workmanship and extensive functions. Here you will find all the important information about your e-bike such as battery status, range, selected support, speed and much more. The Kiox 300 display is also operated via your LED remote on the handlebar. So you always have your e-bike firmly under control and are still perfectly informed. With a small locking plate, the Kiox 300 can also be protected from easy removal from the mount. However, a charging function for smartphones is not provided.
Note: If you have any questions about the conversion or uncertainties about compatibility, please feel free to contact our customer service.
|Bosch System:||Bosch Performance Line CX Gen4 Smart System (BES3)|
|Drive system:||Bosch drive|
|Item:||Bosch Kiox 300 E-Bike Display retrofit kit for Smart System|
|Scope of delivery:||1x Bosch Kiox 300 Smart System, 1x Bosch Kiox 300 display mount incl. anti-theft device, 1x Bosch Smart System display cable 300mm | yes according to selection: without holder; 31.8mm or 35mm single-arm holder incl. clamp, adapter shell, spacer rubber and 4x mounting screws.|
|Compatibility:||only for Bosch Smart System Drive from 2022|
|Handlebar clamp:||31.8mm or 35mm|
