Prices incl. VAT plus shipping costs
- Order number: 2674
- Manufacturer Part Number: 0275007826
- EAN 4054289001377
On order, delivery date unknown
BOSCH NYON, the smart all-in-one talent
The BOSCH NYON 2020 / 2021 all-in-one on-board computer for e-bikes offers the complete package for the most discerning rider. The information centre has a wide range of functions, from navigation to tour and fitness data to analysis, as well as intuitive operation via touchscreen and control unit on the handlebars, making your tour an unforgettable interactive e-bike experience.
Features of the Bosch Nyon 2020 / 2021:
- Touchscreen (touch-sensitive) - 3.2" portrait format
- Coloured background changes depending on the selected support level
- Ergonomic control unit
- OpenStreetMap (OSM) based navigation
- 8 GB memory capacity
- Central position in the cockpit, for all handlebar diameters from 35 mm to 22.2 mm, the mounting width of the holder between the clamps is 60 mm
- Connectivity via Bluetooth and Wi-Fi with smartphone, tablet, PC
- Individually configurable screen views & riding modes
- Lock function - "LOCK"
- Navigation | Ride data | Tour data | Fitness data | Analysis | System status data
Digital networking and navigation like in a car
The experience begins even before the ride. Networking with the digital world takes place wirelessly via Bluetooth or WiFi via eBike Connect. On your smartphone, tablet or PC, you can plan your route down to the last detail and transfer it to the Nyon. Or simply tap your desired destination on the map of your smartphone and send it directly to the Nyon. During the ride, the Nyon shows you the remaining range, taking into account the support mode and geographical conditions, and warns you if you will not reach your intended destination with the selected support level. Different route profiles can be selected for the desired destinations, from "fast" to "beautiful" and "mountain bike" to "S-Pedelec" ("shortest"). In addition, the new Nyon 2021 indicates a possible change of direction via an advisory tone after selecting the destination and starting navigation. Other features such as POIs ( Points Of Interest), e.g. a detour to a museum or restaurant off the route, are now integrated. Shortcuts can now also be defined and saved. This means that a frequently used address does not have to be re-entered before every journey. We are thinking here of the workplace, for example.
Apps such as Komoot, OutdoorActive and Strava can be paired with the Nyon. Routes can be planned via Komoot and OutdoorActive and can then be imported into the Nyon. Traveled routes and profiles can be displayed, shared and evaluated via Komoot and Strava.
The required map material is based on Open Street Maps and can be downloaded free of charge for all existing or recorded regions after registration and login to the Bosch Ebike Portal.
The display automatically adjusts its brightness to the ambient light and thus remains perfectly readable under all conditions. It also differentiates between day and night. The charging status of the smartphone paired via Bluetooth is also visible on the display.
Furthermore, the eBike Connect platform offers many options for very personal settings on the display and the drive system. For example, you can customise your riding modes (Premium function) or your personal cockpit in terms of display and colour with almost 30 predefined variants - individual is also possible. Connection with a smartwatch is now also possible.
Your fitness always in view
Both hobby athletes and professionals benefit from the training function. Real-time data such as cadence, heart rate, calorie consumption and training effect are permanently displayed, analysed and graphically presented on the Fitness Screen. In combination with a heart rate chest strap, you ultimately receive even more precise values and the option of targeted cardio training. Afterwards, eBike Connect enables a precise evaluation of your training.
The Bosch Nyon 2020/2021 (BUI350 ) is compatible with all Bosch motors from the 2nd generation, i.e. from model year 2014.
Notes on the use of Nyon:
- Before using Nyon for the first time, we recommend that you install the "eBike Connect" app on your smartphone
- You must then register via the Bosch "eBike Connect" app or via the Bosch Nyon portal
- In the next step, it makes sense to transfer the map material you require to your "eBike Connect" smartphone app via Wi-Fi
- To individualise route profiles and to use GXP data, the desired data must be prepared beforehand via the ebike-connect app or the Nyon online portal
- The individualisation is automatically transferred during the next synchronisation between Nyon and your smartphone
- The only requirement for synchronisation is an existing connection between Nyon and your smartphone, tablet or PC
|Bosch System:||Bosch Active Line Gen2 (BDU2XX), Bosch Active Line Gen3 (BDU3XX), Bosch Active Line Plus Gen3 (BDU3XX), Bosch Cargo Line Gen4 (BDU4XX), Bosch Cargo Line Speed Gen4 (BDU4XX), Bosch Classic Plus Line, Bosch Performance Line CX Gen2 (BDU2XX), Bosch Performance Line CX Gen4 (BDU4XX), Bosch Performance Line Gen2 (BDU2XX), Bosch Performance Line Gen3 (BDU3XX), Bosch Performance Line Speed Gen2 (BDU2XX), Bosch Performance Line Speed Gen4 (BDU4XX)|
|Drive system:||Bosch drive|
|Power source:||eBike battery, own battery|
|Extras:||eShift and BOSCH ABS compatible | Interface for smartwatch | Day-night mode|
|Weight:||ca. 200g - manufacturer information|
|Item:||Bosch Nyon Display 2020 / 2021 - Gen.2 - E-bike on-board computer retrofit set|

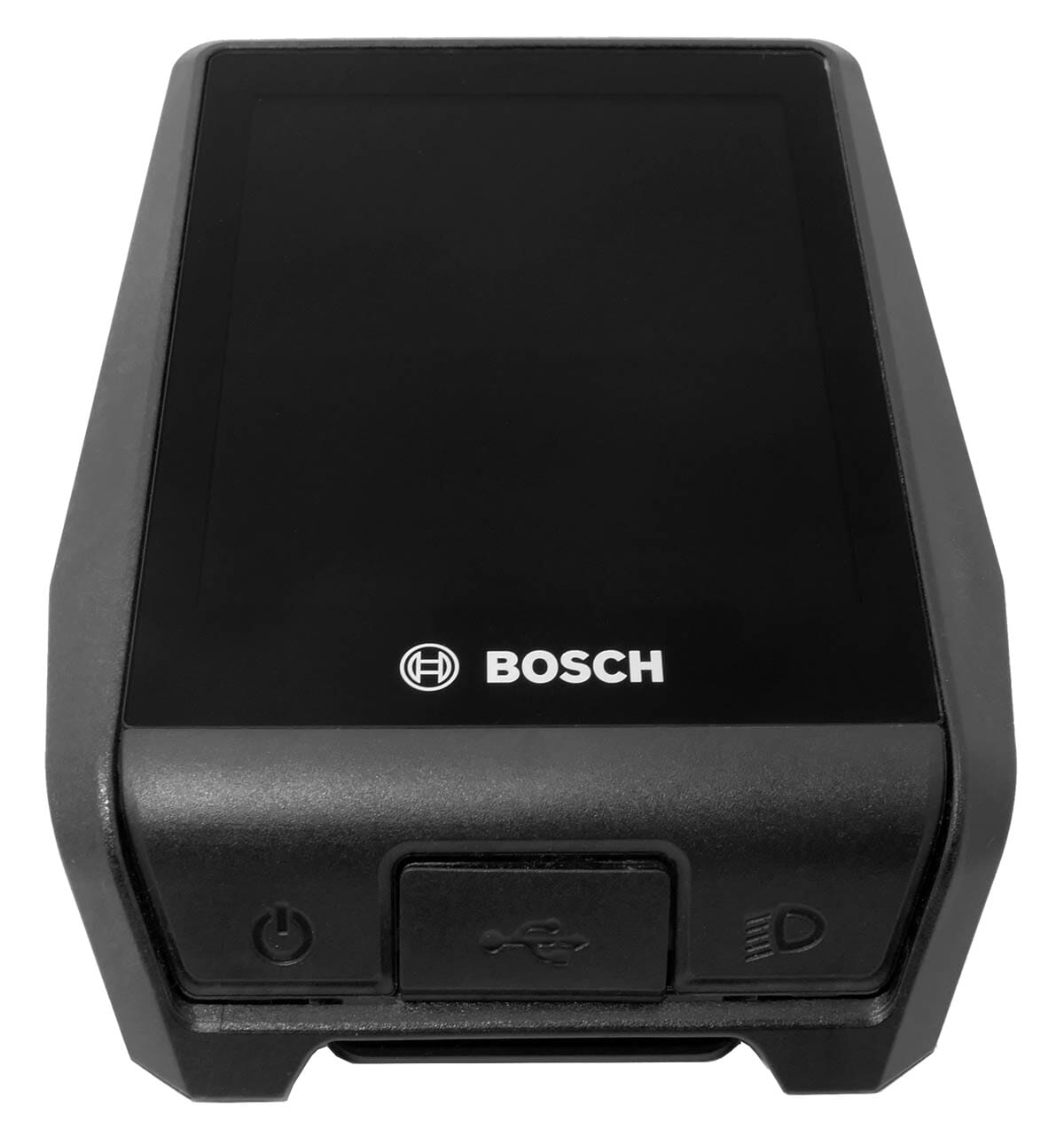

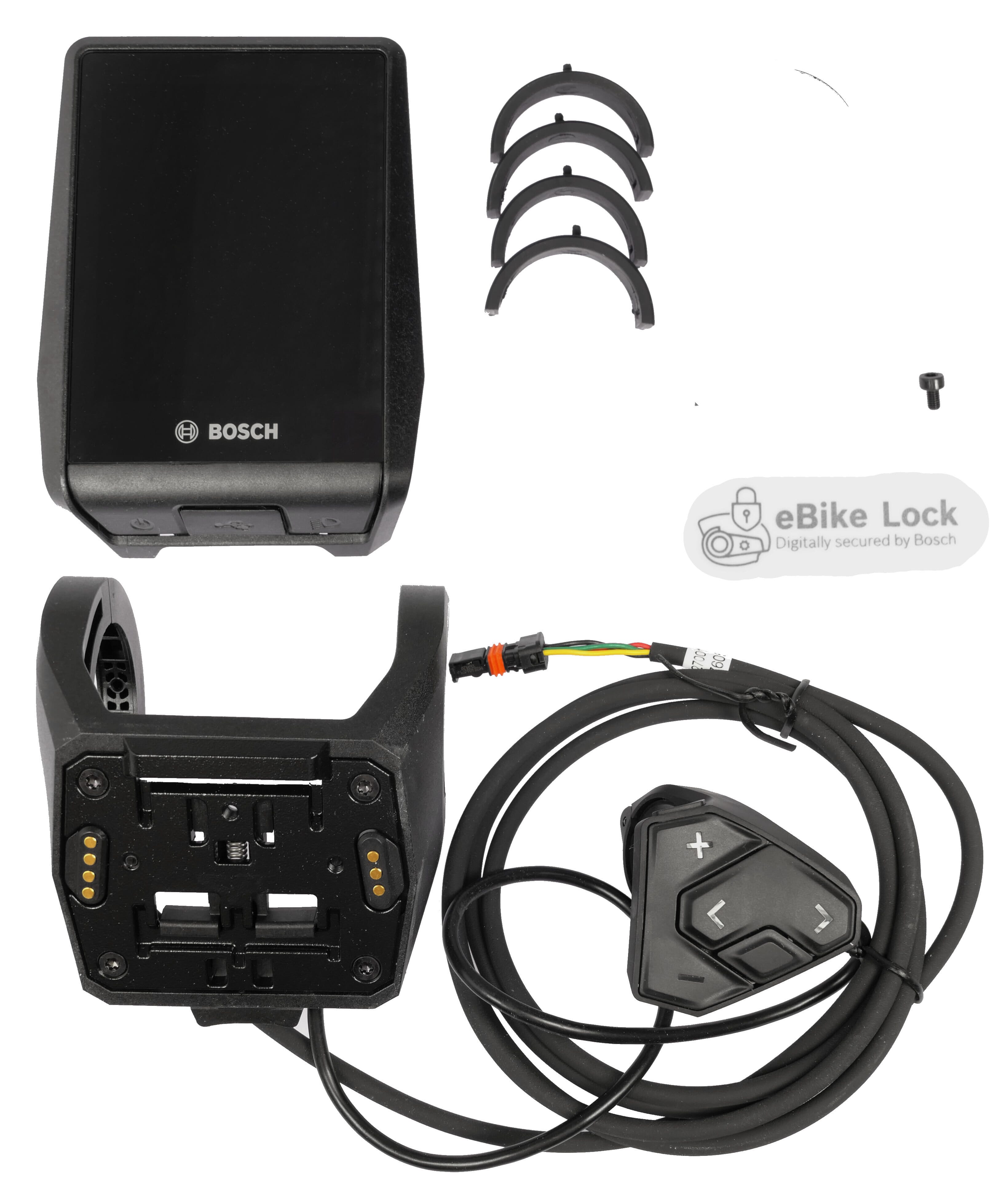

|Scope of delivery:||1 x BOSCH NYON (BUI350) incl. display holder with cable (1500 mm), control unit and 3x4 spacers (31.8mm, 25.4 mm, 22.2mm)|
|Display:||Touchscreen | Gorilla Glass | operable even in the rain and with a glove|
|Compatibility:||Bosch drives with motors from model year 2014 (Generation 2 motors)|
|Specifications:||Individual setting options | Premium functions via BOSCH e-bike Connect | Riding modes, display etc.|
|Functions:||Navigation | Ride data | Tour data | Fitness data | Analysis | System status data | LOCK function|
|Mounting:||Centrally above the stem or handlebars | Two positions are possible by turning the holder by 180°|

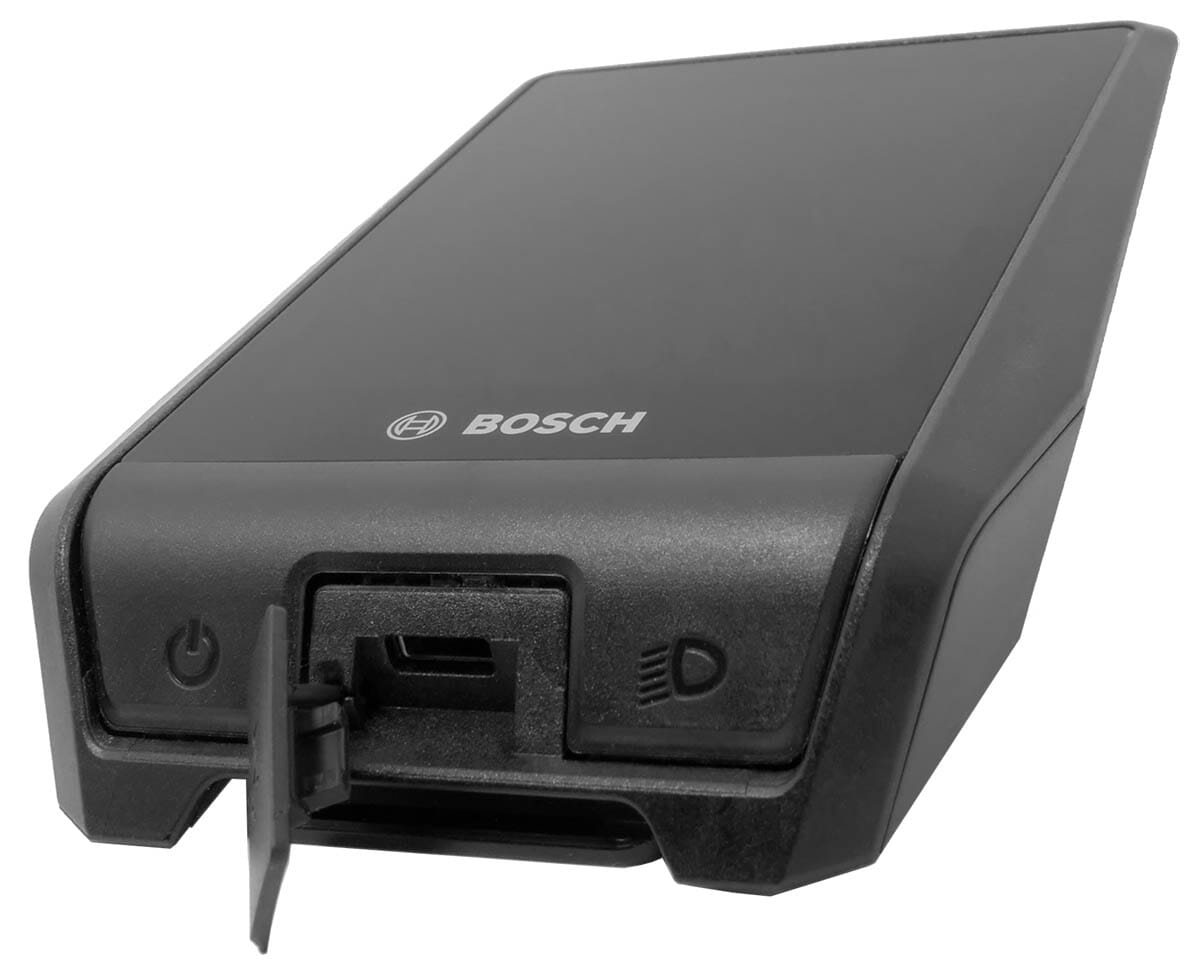

|Connection:||USB service port|
|Display size:||3.2" portrait format | High resolution - 384 x 454 pixels | 16 million colours|
|Connectivity:||Bluetooth | Wi-Fi | USB|
