LUPINE SL Nano Classic eBike Headlight

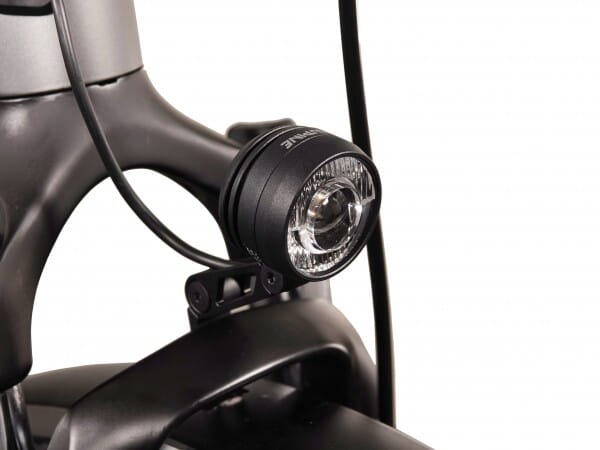

The SL Nano Classic by Lupine is a headlight with 600 lumens of glare-free low beam and optional 900 lumens of high beam. This lamp is installed on the crown of the fork and is connected directly to the motor of your eBike and complies with the StVZO.

Features of the Lupine SL Nano Classic headlight:

• for installation on the fork crown
• with 600 lumen low beam and 900 lumen high beam (optional)
• StVZO-compliant
• High beam version with wired remote control

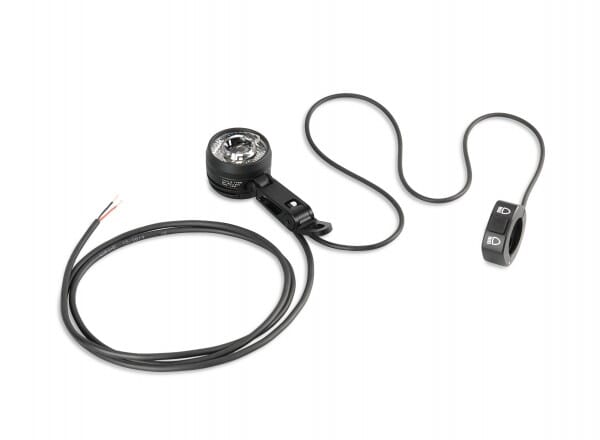

High beam variation in two versions

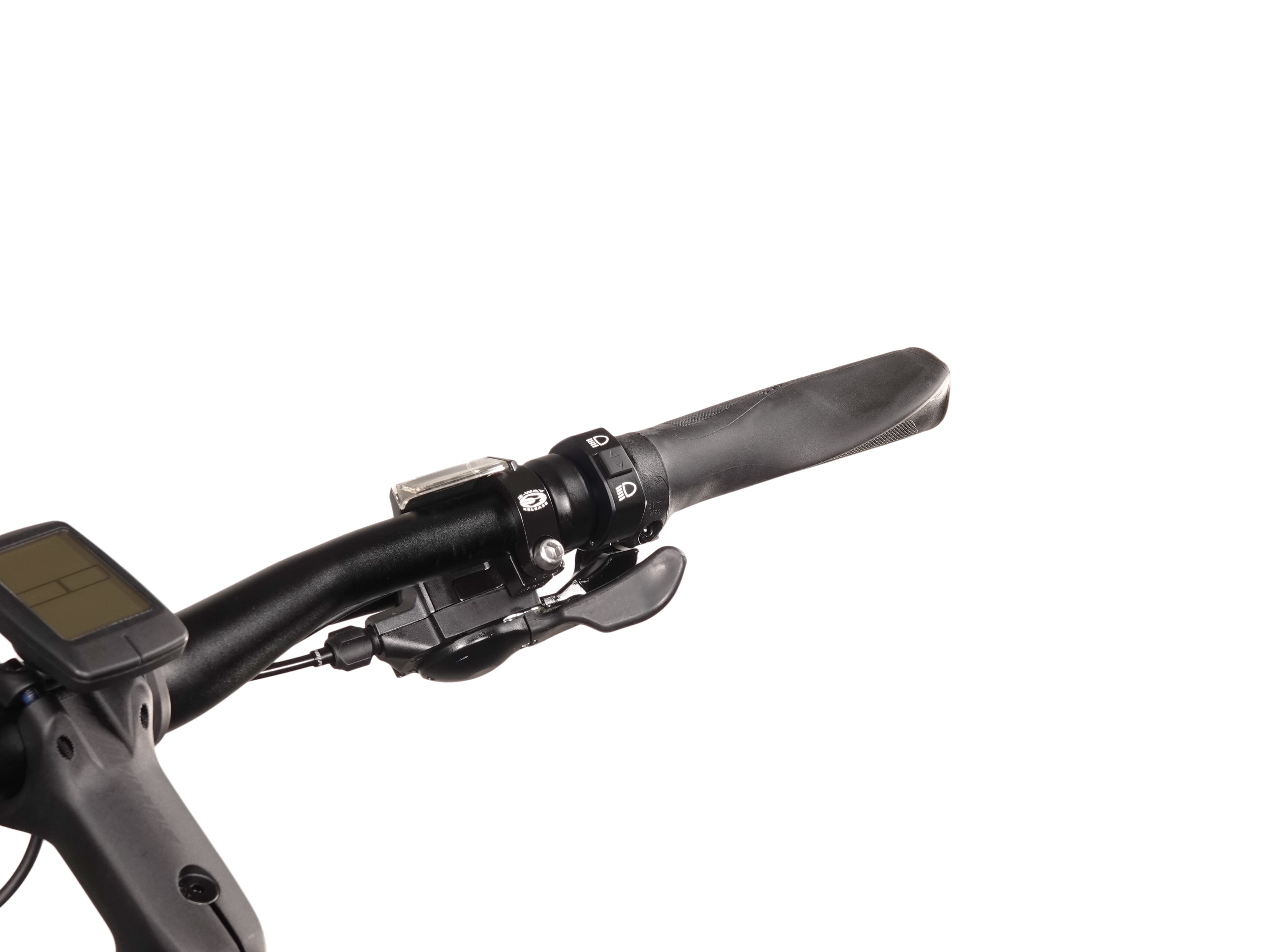

The version with high beam is available with a wired remote control (cable length 67 cm). This remote control is used to be able to switch between deflecting and main beam light in a playful way.

Important: The included connection cable is compatible with Shimano motors.

For Bosch, Brose and Yamaha motors , suitable light cables (and possibly Scotchlok connectors) are required.

The following eBike motors are compatible with the Lupine SL Nano Classic:

Bosch
Bosch Performance CX, Bosch Active Line (from 2017), Bosch Active Line Plus, Bosch Performance CX (Gen3), Bosch Performance CX (Gen4), Bosch Smart System (BES3).

Brose
Brose Gen1, Brose S-Drive, Brose Drive-S Alu, Brose Drive-S Mag

Shimano
Shimano Steps EP8, Shimano Steps E8000, Shimano Steps E5000. Shimano Steps E6100, Shimano Steps E7000

Yamaha
Yamaha PW-X, Yamaha PW-ST, Yamaha PW-TE, Yamaha PW-CE, Yamaha PW-X2, Yamaha PW-SE

Giant
Giant Syncdrive Pro, Giant Syncdrive Pro 2

Fazua
Fazua Evation 1.0
