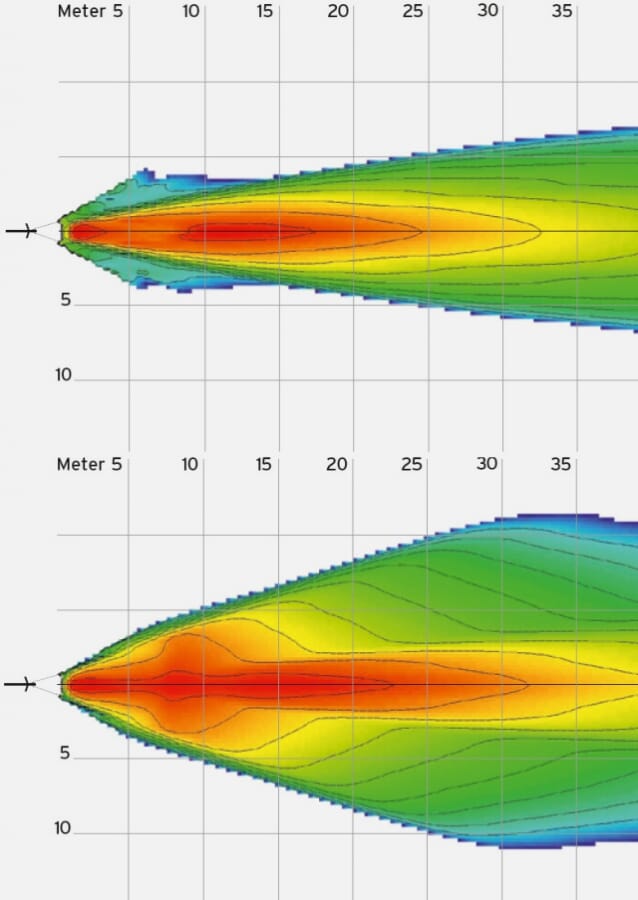

Preview: B&M IQ Cyo Premium EBike Graphic

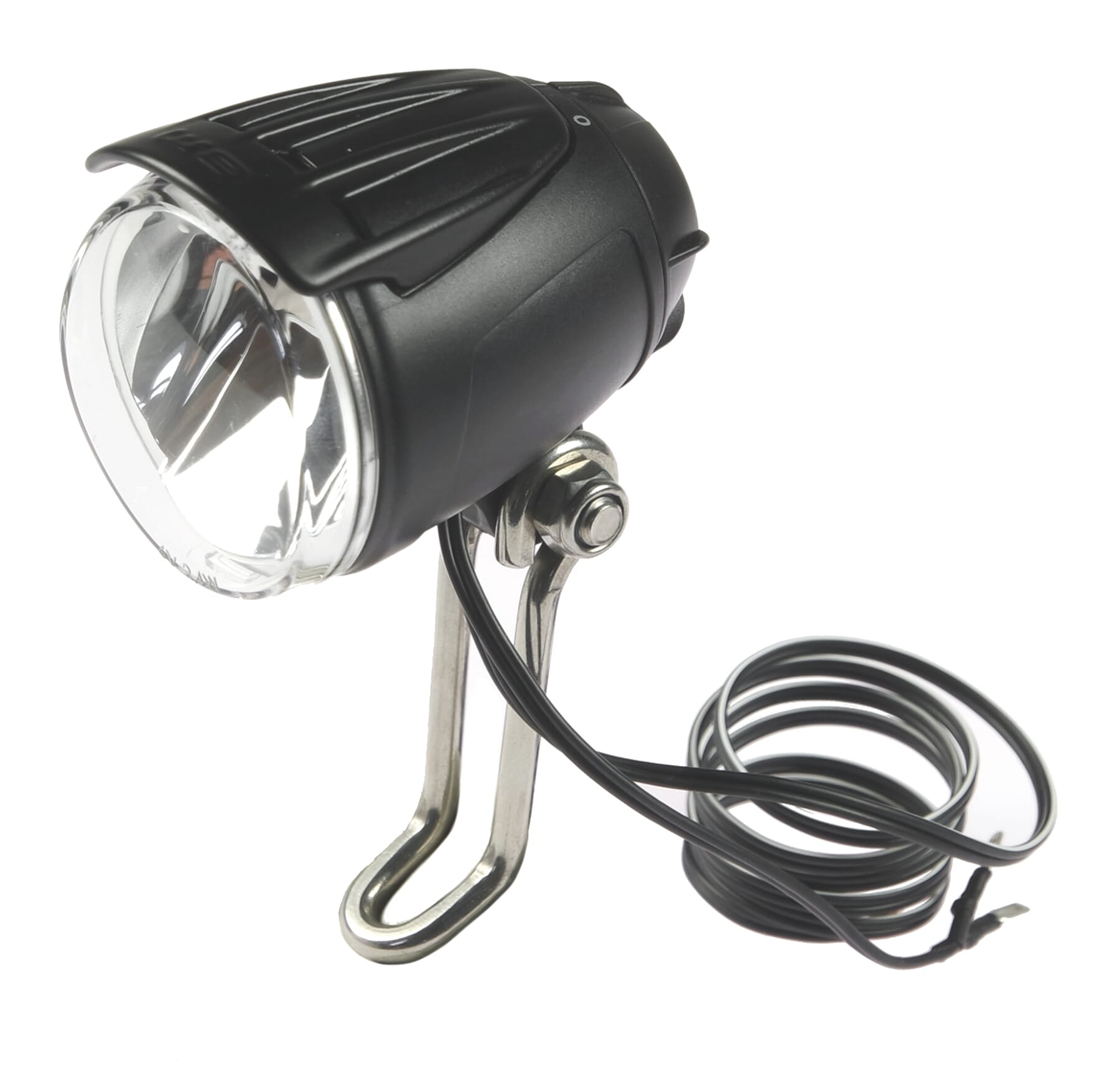

B&M IQ Cyo Premium E-Bike Headlamp with taillight connector - 1752Q42/6N0491

Large area light field Busch and Müller IQ Cyo Premium ebike headlights

65.90€ * RRP 94.90€ * (30.56% Saved)

Prices incl. VAT plus shipping costs

Item number: E-1442
Manufacturer Part Number: 1752Q42/6N-04
EAN: 4006021009776

Delivery time to Germany 1-2 Workdays

Our gift tip for Christmas: The B&M Cyo Premium ebike headlamp with rear light connection... more

Close menu

Our gift tip for Christmas: The B&M Cyo Premium ebike headlamp with rear light connection convinces by compatibility to almost all mid-engine ebike drive systems from 6 to 42 volts and a large-area light picture.

The IQ-Premium-Technology ensures best illumination of the road ahead of the electric bike. With the integrated switch on the Busch and Müller IQ Cyo Premium ebike headlamp, the headlamp can be switched on and off separately from the switching state of the drive system if required.

This electric bike headlamp is designed for input voltages from 6 volts to 42 volts, with supply via the eBike on-board system. The B&M Cyo Premium ebike offers the possibility to connect a direct current taillight (6 Volt). The following Busch and Müller taillights are suitable:

B&M Flat S electric bike taillight
B&M Toplight Line electric bike rear light This corresponds to an output of 2.4 watts.

The Bosch system provides, depending on the engine type, between 500mAh and 1500mAh at 6 Volt depending on the latest software version.
The Yamaha PW system provides 500 mAh for lighting and can therefore also be combined with this B&M Cyo Premium headlamp without hesitation.

Note: In addition, almost all drives are compatible up to a maximum DC voltage of 42 volts. Hub motors with energy recovery / recuperation are not suitable, as voltage peaks of up to 70 volts can be expected for these drive types.

Note about possible alternatives:

The Bosch drive unit on Bosch e-bikes from 2014 onwards with Active, Performance and Performance CX Line However, the headlamp offered here can be used without problems.

Bosch System:	Bosch Active Line Gen2 (BDU2XX), Bosch Active Line Plus Gen3 (BDU3XX), Bosch Cargo Line Gen4 (BDU4XX), Bosch Classic Plus Line, Bosch Performance Line CX Gen2 (BDU2XX), Bosch Performance Line CX Gen4 (BDU4XX), Bosch Performance Line Gen2 (BDU2XX), Bosch Performance Line Gen3 (BDU3XX)
Impulse / Xion System:	Impulse 2.0, Impulse Evo, Impulse Evo Next, Impulse Evo RS, Xion HR Motor
Yamaha System:	Yamaha PW, Yamaha PW-Sport, Yamaha PW-ST, Yamaha PW-TE, Yamaha PW-X, Yamaha PW-X2
Panasonic System:	Panasonic Motor central Deluxe 36 V, Panasonic Motor central NextGen 36 V, Panasonic Motor central Premium 26 V
Power source:	eBike battery
Taillight connector:	Yes
Shimano System:	Shimano E6000, Shimano E8000, Shimano Steps E5000, Shimano Steps E6100, Shimano Steps E7000 (E-MTB)
Supply voltage :	6 Volts, up to 12 Volts, up to 42 Volts
Drive system:	BionX drive, Bosch drive, Giant drive, Impulse drive, Panasonic drive, Shimano drive, Stromer drive, Yamaha drive
Manufacturer:	B&M
Giant SyncDrive System:	Giant SyncDrive Life, Giant SyncDrive Pro, Giant SyncDrive Sport
Weight:	approx. 100 g
Item:	Busch & Müller IQ Cyo Premium Electric Bicycle Headlamp 80 Lux with rear light connection and switch
Scope of delivery:	Lamp with holder, connection cable
Manufacturer:	Busch & Müller
Colour:	black
Measurements:	Lamp head 52 mm diameter and 66 mm length
Item number:	1752Q42/6N
Equipment:	Rear light connection<br>Switch on/off<br>IQ-Premium-Tec 80 Lux with large-area light field
Voltage input:	6 - 42 V DC current
Compatibility:	Bosch Classic, Active et Performance Line, Yamaha X942 et X943 de Bosch
Approval:	Road traffic regulations
